MTL-110

The MTL-110 can measure force up to 110lbf (500N, 50kgf). This tester is ideal for component testing and its compact design fits small work spaces. The MTL-110 has a 6″ (152mm) stroke. The tester’s quick-action lever moves the rack and pinion crosshead 3″ (76mm) per revolution. The lever may be positioned anywhere along the 20″ (508mm) column, and with a 6″ (152mm) throat, large samples can be accurately tested. Options include a digital scale for measuring deflection distance. The base adapter adjusts to accommodate different gage models.

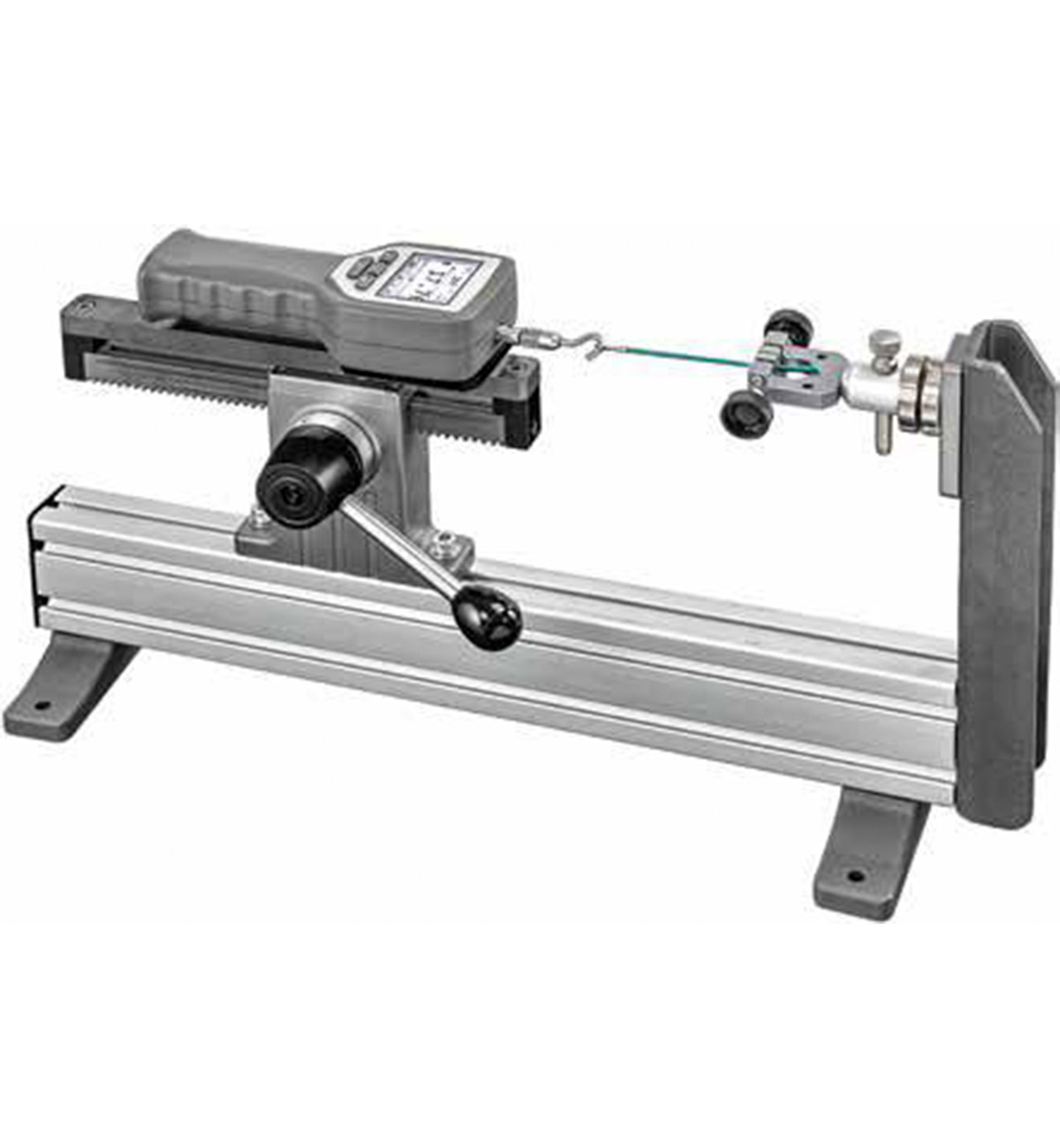

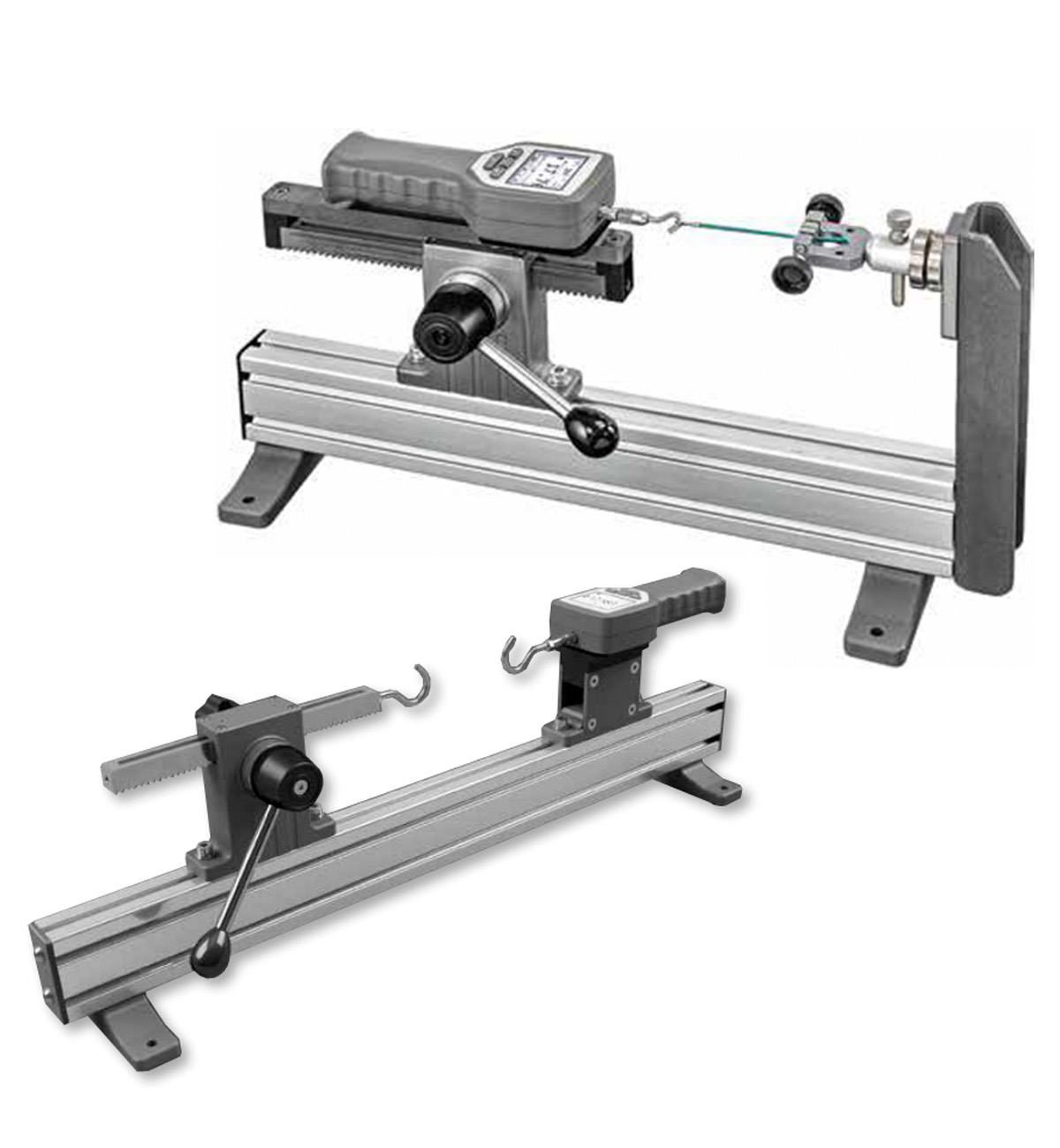

The MTL may be equipped with optional legs so that you can test in a horizontal position.

MTL-330

The MTL-330 can measure force up to 330lbf (1500N, 150kgf). This tester can be used for tensile and compression testing applications, and is ideal for spring testing. Fit the MTL-330 with a Starrett digital force gage and optional digital scale to determine spring rates, initial tension and more. The MTL-330 can be easily mounted to your workbench for secure testing.

Like the smaller MTL-110, the quick-action lever moves the rack and pinion crosshead 3″ (76mm) per revolution. The lever may be positioned anywhere on the 30″ (762mm) column, and with a 4″ (102mm) throat, large samples can be accurately tested. Optional gage adapter kits are available for use with non-Starrett force gages.

The MTL may be equipped with optional legs so that you can test in a horizontal position.
